How Vacuum Nitriding Furnace Works in Heat Treatment?

2025-11-03 06:26:31

How vacuum nitriding furnace Works in Heat Treatment

Introduction to Vacuum Nitriding

Vacuum nitriding is an advanced surface hardening process that enhances the wear resistance, fatigue strength, and corrosion resistance of metal components while maintaining dimensional stability. Unlike traditional nitriding methods performed in atmospheric or gas environments, vacuum nitriding occurs in a controlled, oxygen-free environment under reduced pressure. This modern heat treatment technique has gained significant popularity in aerospace, automotive, tooling, and precision engineering applications due to its superior control over the nitriding process and reduced environmental impact.

Basic Principles of Nitriding

Nitriding is a thermochemical process where nitrogen is introduced into the surface of a metal part to create a hardened case. The process relies on the diffusion of nitrogen atoms into the metal surface at elevated temperatures (typically between 480°C and 580°C or 900°F to 1075°F), forming hard nitrides with alloying elements present in the steel. The resulting surface layer consists of two distinct zones: the compound layer (white layer) at the very surface and the diffusion zone beneath it.

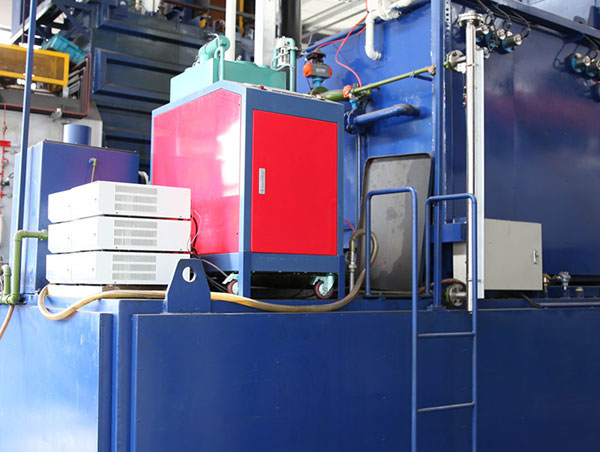

Components of a Vacuum Nitriding Furnace

A typical vacuum nitriding furnace consists of several key components:

1. **Vacuum Chamber**: Made of high-quality stainless steel to withstand high temperatures and corrosive environments, with double walls for cooling.

2. **Heating System**: Electric resistance Heating elements (often molybdenum or graphite) provide uniform heating throughout the chamber.

3. **Vacuum System**: Includes mechanical pumps, diffusion pumps, or turbo-molecular pumps to achieve and maintain the required vacuum levels (typically 10⁻² to 10⁻³ mbar).

4. **Gas Introduction System**: Precise flow controllers for nitrogen-bearing gases (ammonia, nitrogen-hydrogen mixtures, or other process gases).

5. **Quenching System**: Some furnaces incorporate gas quenching capabilities for certain applications.

6. **Control System**: Advanced PLC or computer controls for temperature, pressure, gas flow, and process timing.

7. **Cooling System**: Water-cooled jacket or heat exchanger to control furnace temperature.

The Vacuum Nitriding Process

The vacuum nitriding process follows a carefully controlled sequence:

1. Loading and Initial Evacuation

Components are carefully loaded into the furnace chamber, ensuring proper spacing for uniform gas flow and temperature distribution. The chamber is then sealed, and the vacuum system begins evacuating air to create the oxygen-free environment.

2. Heating Phase

The heating elements gradually raise the temperature to the desired nitriding range (typically 480-580°C). The vacuum environment allows for very uniform heating without oxidation of the parts.

3. Purge and Stabilization

Once the target temperature is reached, the system may perform additional purges to ensure complete removal of any residual oxygen. The temperature is stabilized to ensure uniformity throughout the load.

4. Nitriding Phase

Process gases are introduced in controlled quantities while maintaining partial vacuum conditions. The exact gas mixture depends on the specific nitriding process:

- For plasma (ion) nitriding: A nitrogen-hydrogen mixture (typically 25% N₂, 75% H₂) at pressures of 1-10 mbar

- For gas nitriding: Ammonia (NH₃) or ammonia-hydrogen mixtures

- For vacuum nitroCarburizing: Additional carbon-bearing gases may be introduced

5. Diffusion and Layer Formation

Nitrogen atoms diffuse into the metal surface, forming nitrides with alloying elements like chromium, aluminum, vanadium, and molybdenum. The process duration (typically 4-100 hours) determines the case depth.

6. Cooling and Unloading

After the nitriding cycle is complete, the gas supply is stopped, and the furnace is allowed to cool under vacuum or controlled atmosphere to prevent oxidation. Once cooled to a safe temperature, the chamber is brought to atmospheric pressure, and the treated parts are unloaded.

Advantages of Vacuum Nitriding

Vacuum nitriding offers several significant advantages over conventional nitriding methods:

1. **Precise Process Control**: The closed system allows for exact control of temperature, gas composition, and pressure, resulting in highly reproducible results.

2. **Uniform Case Depth**: Vacuum environment ensures even gas distribution and temperature uniformity, leading to consistent case depth even on complex geometries.

3. **No Oxidation**: The absence of oxygen prevents surface oxidation, eliminating the need for post-treatment cleaning in many cases.

4. **Environmentally Friendly**: Reduced gas consumption and elimination of harmful emissions compared to traditional salt bath or gas nitriding.

5. **Improved Surface Quality**: Produces cleaner surfaces with minimal distortion compared to conventional methods.

6. **Flexibility**: Can process a wide range of materials including low-alloy steels, tool steels, stainless steels, and even some non-ferrous alloys.

7. **Energy Efficiency**: Better heat retention in the vacuum environment reduces energy consumption.

Applications of Vacuum Nitriding

Vacuum nitriding finds applications across various industries:

1. **Automotive**: Crankshafts, camshafts, gears, valves, and other wear-prone components

2. **Aerospace**: Landing gear components, turbine parts, and other high-stress components

3. **Tool and Die**: Injection molds, extrusion dies, cutting tools, and forming tools

4. **Medical**: Surgical instruments and implants requiring biocompatibility and wear resistance

5. **Oil and Gas**: Valve components, pump parts, and drilling equipment

6. **General Engineering**: Gears, shafts, bearings, and other mechanical components

Comparison with Other Nitriding Methods

Vacuum nitriding differs from other nitriding techniques in several ways:

1. **Gas Nitriding**: Performed at atmospheric pressure with ammonia, leading to less control over the white layer formation and potential environmental concerns from unreacted ammonia.

2. **Salt Bath Nitriding**: Uses molten cyanide salts, creating environmental and safety concerns, with less control over the process parameters.

3. **Plasma (Ion) Nitriding**: Similar to vacuum nitriding but uses plasma to activate the nitrogen species, allowing for lower process temperatures.

4. **Vacuum Nitrocarburizing**: Similar equipment but introduces carbon along with nitrogen to create different surface properties.

Process Variations

Several specialized vacuum nitriding processes exist:

1. **Active Screen Plasma Nitriding**: Uses a plasma screen to provide more uniform treatment of complex shapes.

2. **Post-Oxidation Nitriding**: Combines nitriding with a controlled oxidation step to enhance corrosion resistance.

3. **Low-Temperature Nitriding**: Special processes developed for stainless steels and other materials sensitive to high temperatures.

Quality Control and Testing

Quality assurance in vacuum nitriding involves several methods:

- Hardness testing (surface and microhardness)

- Case depth measurement (metallographic or hardness traverse)

- Microstructure examination

- Corrosion testing

- Dimensional verification

Conclusion

Vacuum nitriding furnaces represent a sophisticated advancement in heat treatment technology, offering precise control over the nitriding process while addressing environmental and quality concerns associated with traditional methods. By combining the benefits of vacuum technology with controlled gas introduction, these systems produce components with superior surface properties, dimensional stability, and performance characteristics. As material science advances and industry demands for higher performance components increase, vacuum nitriding continues to grow in importance as a critical surface engineering solution across multiple industrial sectors.
